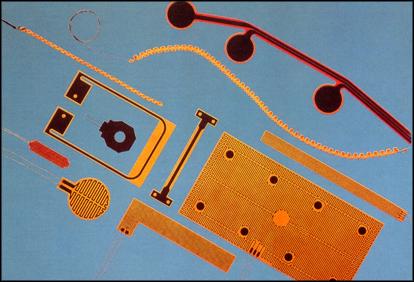

Flexfoil Heaters
714-890-0058
Flexfoil heaters furnish fast warm-up, precise heat,
and long life in virtually any shape, size, and wattage.
Flexfoil heaters provide highly efficient heat transfer over a wide temperature range. The thin, lightweight, and flexible design provides superior surface conformance.. extending heater life by minimizing the thermal gradient between resistive element and heat sink. In addition, Flexfoil heaters feature low outgassing, tear resistance, and dimensional stability.
Flexfoil heaters are available with integral RTD’s, thermocouples, or thermistors for optimum response time and gradient control. Sensors can be laminated inside a heater, adhered to the heater surface, or installed at specific locations within the system to prevent overshoot and heat fluctuations.
Factory Bonding
Proper heat-to-part installation is critical to achieving a tight bond, superior performance, and high reliability. For optimum heater performance and cost effectiveness, we can factory mount a heater to your thermal subassembly. You can supply the heat sinks or have us fabricate them to your specification…giving you a guaranteed bond, superior reliability, and the benefit of our extensive experience in bonding techniques.
Self Regulating
Valve Heater
Problem: Heater needed to maintain valve temperature without thermostatic control.
Solution: A self regulating valve heater was developed using proprietary foil with a high coefficient of resistance combined with carefully controlled resistance at temperature to reach equilibrium. Inherent low start-up resistance satisfied the rapid heating environment.
Fluxfoil Properties & Features
-
Temperature Range From -320°F to 450°F
-
Power Densities to 40W/sq. in.
-
Thicknesses From .007″
-
Weight: Less Than One Ounce/sq. ft.
-
Superior Chemical Resistance
-
Low Outgassing
Available Materials:
-
Kapton®
-
Silicone Rubber
-
Mylar
-
Neoprene
Elements:
-
Etched Foil
-
Wire Wound
Installation:
-
Film Adhesive
-
Factory Lamination
-
Vulcanization
Applications:
-
Aerospace
-
Medical
-
Industrial
-
Process Control
-
Food Processing
-
Defense
